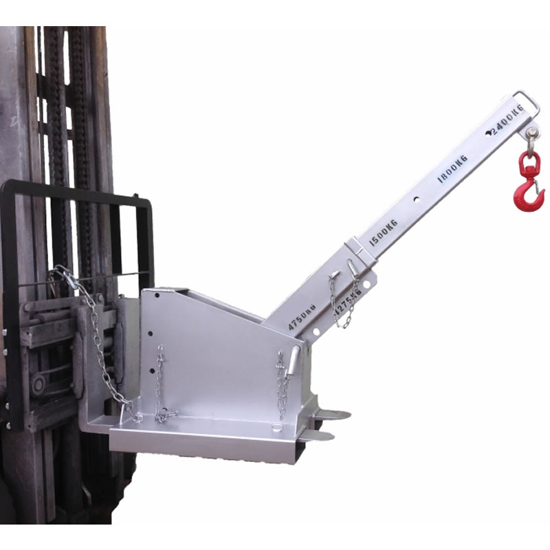

Incline 4.75 Ton Short Jib Attachment In Stock Melbourne
The Incline Jib 4.75 Ton Short is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres. Zinc plated finish. Comes fitted with safety hook and shackle. In Stock Melbourne.
- *
Incline 4.75 Ton Short Jib Attachment In Stock Melbourne
The Incline Jib 4.75 Ton Short is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres. Zinc plated finish. Comes fitted with safety hook and shackle.
- Safe Working Load (SWL 4750kg Max)
- Unit Weight 180kg
- Load Centre 820mm
- Horizontal Centre of Gravity 650mm
- Vertical Centre of Gravity 300mm
- Pocket Size 185 x 75mm
- Pocket Centres 370mm
Safe Working Load Per Position
| POSITION | 1 | 2 | 3 | 4 | 5 |
| EXTENSION (mm) | 820 | 1120 | 1270 | 1650 | 2030 |
| SWL (Kg) | 4750 | 3600 | 2400 | 1800 | 1500 |
In Stock Melbourne, Australia.
